Summa S-Series Roll Cutters
Authorized Summa Dealer — Sales, Service & Support
Best-in-Class Contour Cutting for Printed Graphics and Vinyl
Built on 30+ years of roll cutter expertise: The Summa S-Series includes two product lines, S One and S Class 3, engineered for sign shops, vehicle graphics installers, and print-and-cut operations that need pinpoint accuracy on every job. From efficient drag knife cutting (blade swivels to follow cut direction) to Summa's exclusive True Tangential technology (motorized blade lifts and rotates at corners), there's an S-Series cutter for your workflow.
Summa precision engineering since 1973 • Flatbed Tools service excellence
Quick Answers
What are Summa S-Series roll cutters?
S-Series roll cutters are professional vinyl cutting plotters built for accurate contour cutting (cutting around printed graphics following the image shape). They handle vinyl lettering, stickers, labels, vehicle wraps, and heat transfer materials. Summa's OPOS optical positioning system (camera-based print-to-cut alignment) automatically aligns cut paths to printed graphics, which is essential for print-and-cut workflows.
What's the difference between S One and S Class 3?
Summa S One cutters use drag knife technology with up to 600g cutting force. Ideal for growing businesses that need reliable, professional-grade cutting at a competitive price point. S Class 3 cutters offer your choice of drag knife, True Tangential, or dual-head (TC) configurations with up to 1000g force, faster speeds, longer tracking, and advanced features like OPOS CAM (wide-angle camera that reads all marks in one pass) and G-Performance mode (speed optimization boosting throughput up to 40%). Built for professionals who need maximum precision and throughput.
What materials can S-Series cutters handle?
S-Series cutters process adhesive vinyl, reflective vinyl, heat transfer (flex/flock), laminated prints, window films, sandblast stencil material (thick rubber masking for glass etching), and high-performance films. S Class 3 tangential models handle thicker and tougher materials, up to 0.047" for sandblast stencil, with greater precision on corners and fine details. Our team can help you select the right blade angles and cutting parameters for your specific materials.
What's the difference between drag knife and tangential cutting?
Drag knives are pulled through the material. Efficient for most vinyl and film applications. Tangential knives use a motorized blade that lifts and rotates at corners, delivering cleaner cuts on thick materials and sharper precision on intricate details. Summa's True Tangential technology is unique in the industry and available exclusively on S Class 3 T and TC models.
What widths are available?
S One models range from 24" (desktop) to 64" cutting width. S Class 3 models range from 30" to 64". Both lines include options for standard print widths and large-format applications.
Why buy from Flatbed Tools?
Expert help matching you with the right cutter, professional installation and training, ongoing technical support, fast blade delivery, and responsive service. Our team has decades of experience across all major cutting platforms and can help you optimize your print-and-cut operation.
Which S-Series Is Right for You?
S One and S Class 3 serve different production needs. Here's a quick guide to help you choose.
Choose S One if you need...
- • Value and reliability as top priorities
- • Drag knife cutting for vinyl, flex/flock, and laminated prints
- • A future-proof platform that grows with your business
- • Professional results on a budget-conscious investment
- • Desktop to large-format options (24" to 64")
Choose S Class 3 if you need...
- • Top-tier performance and pinpoint precision
- • True Tangential cutting for thick materials and sharp corners
- • Up to 40% faster production with G-Performance mode
- • Cut-and-crease in a single pass (TC dual-head models)
- • OPOS CAM for 10× faster mark registration
- • A high-volume professional environment
Not sure which model fits your workflow? Let's talk.
Get Personalized RecommendationsS One vs S Class 3 at a Glance
Compare key specifications between the two S-Series lines. Not sure which specs matter most for your workflow? We can walk you through the differences.
| Specification |
S One Value & Reliability |
S Class 3 Cutting Excellence |
|---|---|---|
| Cutting Technology | Drag knife only | Drag, True Tangential, or TC (dual head) |
| Max Knife Pressure | 600 grams | 400g (drag) / 1000g (tangential) |
| Max Speed | 44 ips (inches per second) | 56 ips |
| Max Acceleration | 3G | 4.25G |
| Tracking Guarantee | 26 ft (media <30" wide) | 40 ft (media <30" wide) |
| Width Range | 24" to 64" | 30" to 64" |
| OPOS CAM | — | TC models / Factory upgrade |
| Dual Head Option | — | TC models (knife + pen/creaser) |
| G-Performance Mode | — | Standard (up to 40% faster) |
| Roll-Up System | — | Optional (140/160 models) |
| Best For | Growing businesses, budget-conscious shops | Professional, high-demand environments |
| View S One → | View S Class 3 → |
Explore S-Series Product Lines

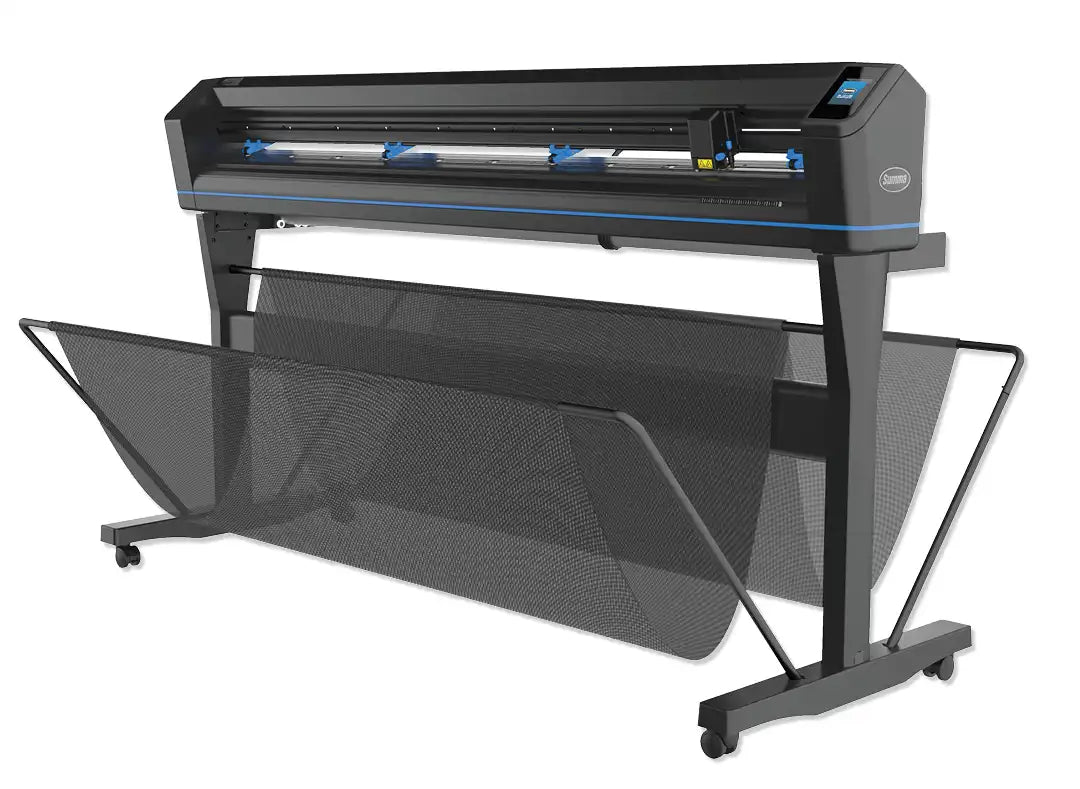

Summa S One Series
Value & Reliability — Professional roll cutting that grows with your business
- • Drag knife technology with up to 600g cutting force
- • OPOS Xtra alignment (enhanced optical positioning for complex layouts)
- • Legendary 26 ft tracking guarantee
- • 6 models from 24" to 64" cutting width
- • Intuitive touchscreen and ergonomic design
- • FlexCut through-cutting (perforated cuts that snap out of the liner)
We'll help you configure the right width and accessories for your production needs.
Learn More →

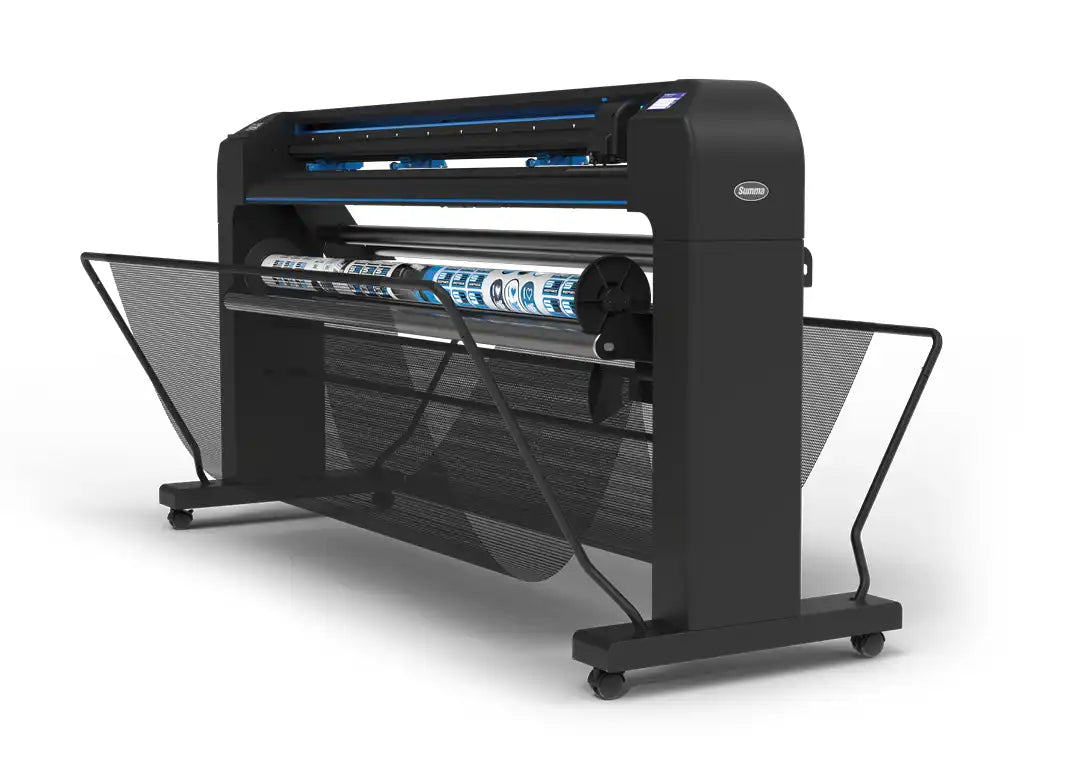

Summa S Class 3 Series
Cutting Excellence — Professional-grade roll cutting with no compromises
- • Choice of drag, True Tangential, or TC cutting heads
- • Up to 1000g cutting force for thick/tough materials
- • G-Performance mode: up to 40% faster production
- • OPOS CAM: 10× faster mark registration (TC models)
- • Dual-head TC option for cut + crease/draw
- • 4 models from 30" to 64" cutting width
Let us help you choose between drag, tangential, and TC configurations based on your materials and volume.
Learn More →Why Buy Your S-Series from Flatbed Tools
Authorized Summa Dealer — Sales, Installation, Training & Service
Expert Model Selection
Drag knife or tangential? S One or S Class 3? We'll help you match the right cutter to your materials, production volume, and print-and-cut workflow. That way you're not paying for features you don't need or missing ones you do.
Professional Installation & Training
We deliver, install, and provide comprehensive training on your S-Series cutter. Your team will be running accurate contour cuts quickly, with confidence in OPOS setup and blade selection.
Print-and-Cut Workflow Experts
Our team has decades of experience across all major cutting platforms. We can advise on optimal blade selection, cutting parameters, OPOS alignment methods, and RIP integration to maximize your throughput and cut quality.
Fast Blade Delivery
Keep your S-Series cutter running with fast consumables delivery. We stock Summa-compatible blades and ship quickly across the US and Canada, so dull blades don't slow you down.
Ongoing Support
Questions about OPOS calibration? Troubleshooting tracking issues? Need help with GoSign software? We're here for technical support and workflow optimization long after installation.
Service That Actually Shows Up
When your S-Series cutter needs service, we respond. Flatbed Tools provides preventative maintenance, repairs, and support that keeps you productive. That's a service level many dealers simply can't match.
Compatible Blades
Keep your S-Series cutter running at peak performance with genuine replacement blades. We stock a full range of consumables compatible with all Summa roll cutters.
- → Standard drag knife blades (36°, 45°, 60° - steeper angles for thicker materials)
- → Tangential knife blades for S Class 3 T/TC models
- → Sandblast knife blades for stencil material
- → Blade holders and tool accessories
- → Fast shipping across the US and Canada
Expert Installation & Support
Maximize your S-Series investment with professional installation, training, and ongoing support from our experienced team.
- → Professional installation and setup
- → Comprehensive operator training
- → OPOS calibration and print-and-cut workflow optimization
- → GoSign software training and RIP integration support
- → Preventative maintenance programs
- → Technical support when you need it
Ready to Find Your Perfect Roll Cutter?
Cutting vinyl lettering, contour-cutting printed graphics, or processing vehicle wraps? We're here to help you find the right S-Series configuration for your business.
