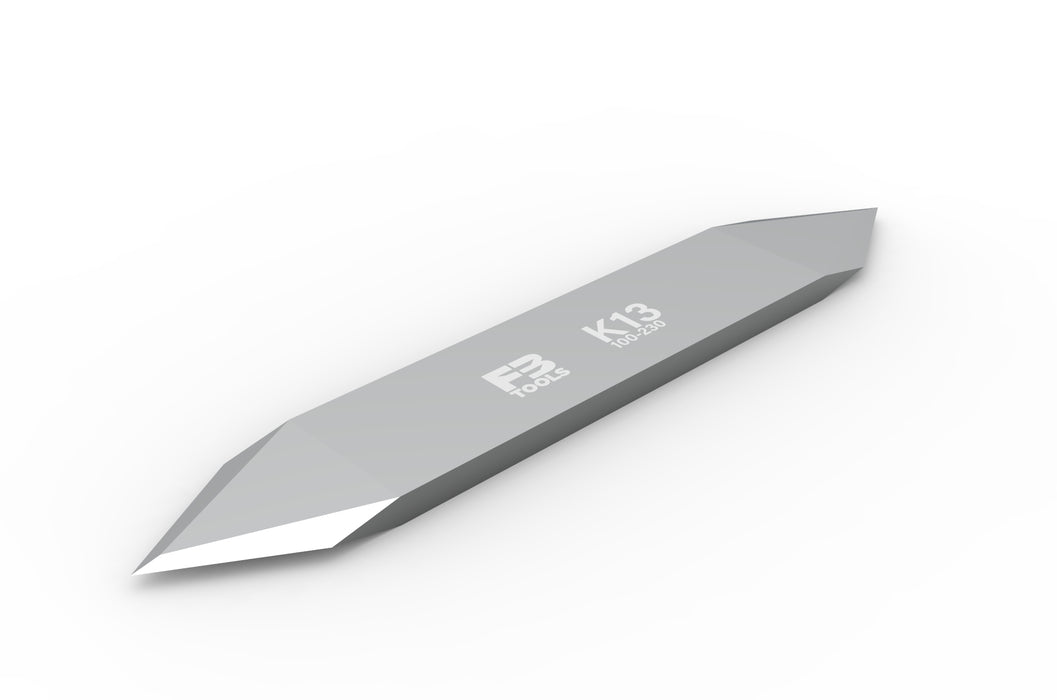

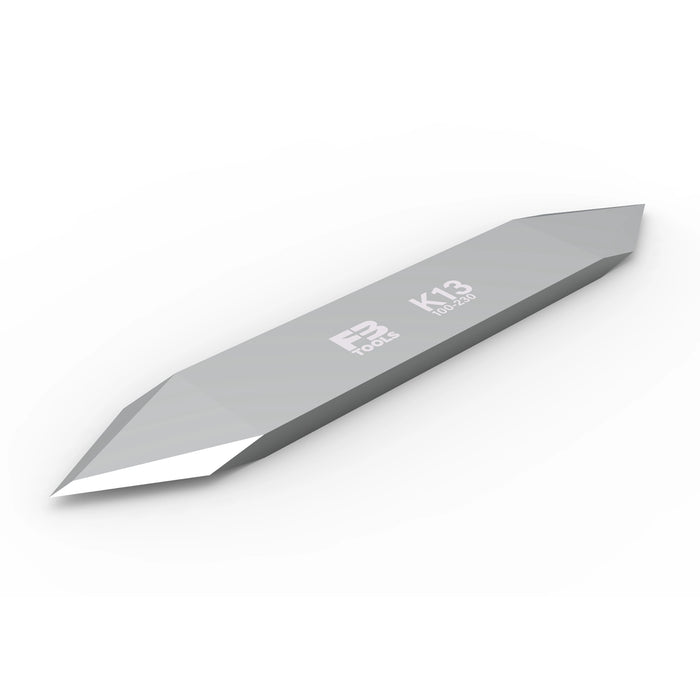

K13

A direct replacement for the Esko BLD-DF213 (G42441204), Gerber MCT DE13 (895013), and Zünd Z11 (3910309), with no holder modification needed. Double edge drag blade for through cutting on Esko, Gerber / MCT, and Zund flatbed cutting systems.

Sold individually.

Direct OEM replacement

The K13 is a confirmed drop-in replacement for the Esko BLD-DF213 (G42441204), the Gerber MCT DE13 (895013), and the Zünd Z11 (3910309). Same form, same fit, same geometry. No holder changes required.

What is through cutting?

Through cutting means the blade cuts completely through all layers of the material, including any backing or liner. The cut piece separates fully from the sheet. This blade is built for through-cut work. It is not a kiss-cut blade.

Fine grain tungsten carbide edge

The K13 is made from fine grain tungsten carbide. Tighter grain structure holds a sharper edge longer and resists chipping under load. For production runs on materials like polycarbonate, magnetic media, and 3M VHB, that edge retention means fewer blade changes and more consistent cut quality across a shift.

Common questions

How do I know this fits my machine?

If your machine uses the Esko BLD-DF213 (G42441204), Gerber MCT DE13 (895013), or Zünd Z11 (3910309), the K13 is a confirmed drop-in replacement. Not sure of your current blade? Contact us before ordering and we will confirm compatibility.

What materials does it cut?

The K13 handles self adhesive vinyl, polycarbonate, polyester, masking film, window prep vinyl, magnetic media, transfer paper, and 3M VHB. If you are cutting something outside that list or need help matching blade to material, reach out. We have probably seen the application before.

What does double edge mean on a drag blade?

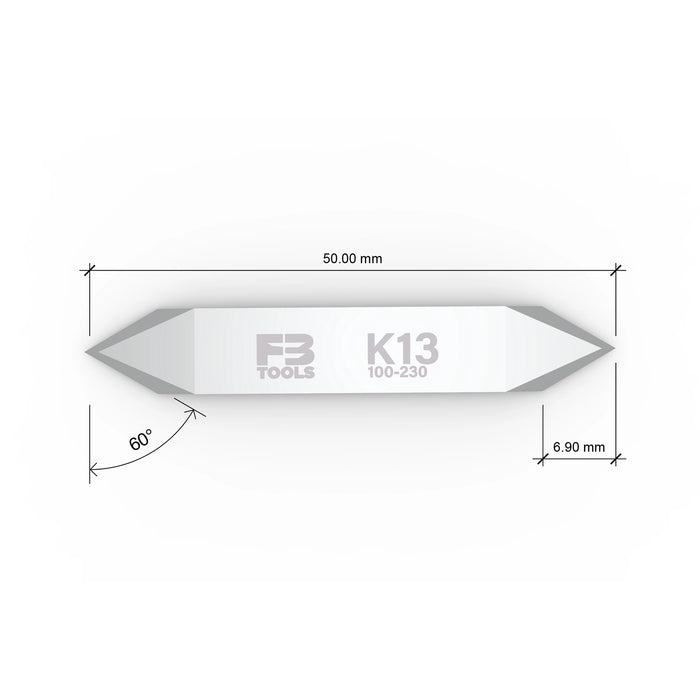

A double edge blade has a cutting edge on both sides of the tip. This allows the machine to cut in multiple directions without rotating the blade holder between passes, which improves speed and cut quality on detailed geometry. The 60° angle gives this blade a balance of sharpness and edge durability suited to the materials it is designed for.

How do I know when to replace it?

Watch the cut quality. If edges are dragging instead of cutting clean, material is tearing rather than separating, or pieces are not releasing the way they should, it is time to swap the blade. Edge degradation shows up in cut quality before cuts fail completely.

Getting the most from your cutting table

A fresh blade is a good start. But if you are going through blades faster than expected, or cut quality has become inconsistent, the blade is rarely the whole story. Cut depth, speed, pressure, and machine condition all affect how long a blade lasts and how clean it cuts.

It is worth asking: When was your machine last serviced? Are your parameters dialed in for this material? Is this the right blade geometry for what you are cutting? Could your operators use time with someone who runs these machines every day?

Flatbed Tools offers machine service, preventive maintenance, operator training, and workflow consulting. If something is not cutting right, reach out. We have probably seen it before.
