K3
| Cutting Method | Kiss Cut |
| Recommended Materials | Self Adhesive Vinyl, Polycarbonate, Polyester, Masking Film, Window Prep Vinyl, Magnetic Media, Transfer Paper, 3M VHB |
| Cutting Angle | Double Edge 35° / 40° |
| Max Cutting Depth | 0.039in / 1.0mm |
| Knife Type | Drag, Round Stock |
| Start Over Cut | 0.057in / 1.45mm x Tm |
| End Over Cut | 0.057in / 1.45mm x Tm |
| Knife Materials | Fine Grain Tungsten Carbide |
| Replacement For | Esko BLD-KC103 (i-103) / G42458323, Zünd Z3 / 3910115, Gerber MCT KC3 / 895003 |
Enhance your cutting efficiency with our premium replacement blades for Zünd Z3 / 3910333 with a Flatbed Tools K3 Kiss Cut blade. Perfect for materials like self-adhesive vinyl and polycarbonate. Shop now at Flatbed Tools for superior quality and performance. The K3 blades helps with weed-ability of PSV.
The K3 is a direct replacement for the Esko BLD-KC103 (i-103 / G42458323), Zund Z3 3910115, and Gerber MCT KC3 895003, with no holder modification needed. It is a double edge, round stock drag blade built for kiss cutting on Zund Z3, Esko, Kongsberg, and Gerber MCT cutting systems.
The K3 is a kiss cut drag blade for Zund Z3, Esko, Kongsberg, and Gerber MCT cutting systems. It cuts cleanly through face materials including self-adhesive vinyl, polycarbonate, masking film, and window prep vinyl without breaking the liner. The double edge geometry is well suited to pressure sensitive vinyl jobs where clean weeding is part of the workflow.
Direct OEM replacement
The K3 replaces the Esko BLD-KC103 (i-103 / G42458323), the Zund Z3 3910115, and the Gerber MCT KC3 895003. Same form, same fit. No modification to your tool holder required.
What is kiss cutting?
Kiss cutting means the blade cuts through the face material (the vinyl, film, or label stock) without cutting through the liner underneath. The finished piece peels cleanly from the sheet. The K3 is built specifically for kiss cut work. It is not a through-cut blade.
Fine grain tungsten carbide
The K3 is made from fine grain tungsten carbide, which holds an edge longer than standard carbide and resists chipping under repeated use. For shops running self-adhesive vinyl, masking film, or other thin face materials at volume, edge retention means more usable cuts per blade before quality starts to drop.
Common questions
How do I know this fits my machine?
If your machine uses the Esko BLD-KC103 (i-103 / G42458323), the Zund 3910115, or the Gerber MCT KC3 895003, the K3 is a direct fit. Not sure? Contact us before you order.
What materials does it cut?
The K3 is rated for self-adhesive vinyl, polycarbonate, polyester, masking film, window prep vinyl, magnetic media, transfer paper, and 3M VHB. If your application requires cutting through the liner, you need a through-cut blade instead. Contact us if you are unsure which blade fits your job.
What do the cutting angle and wedge angle mean?

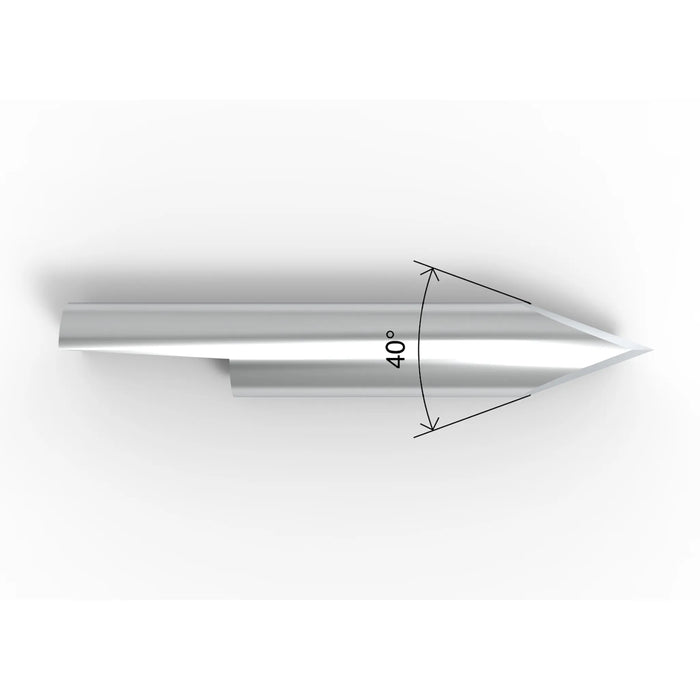

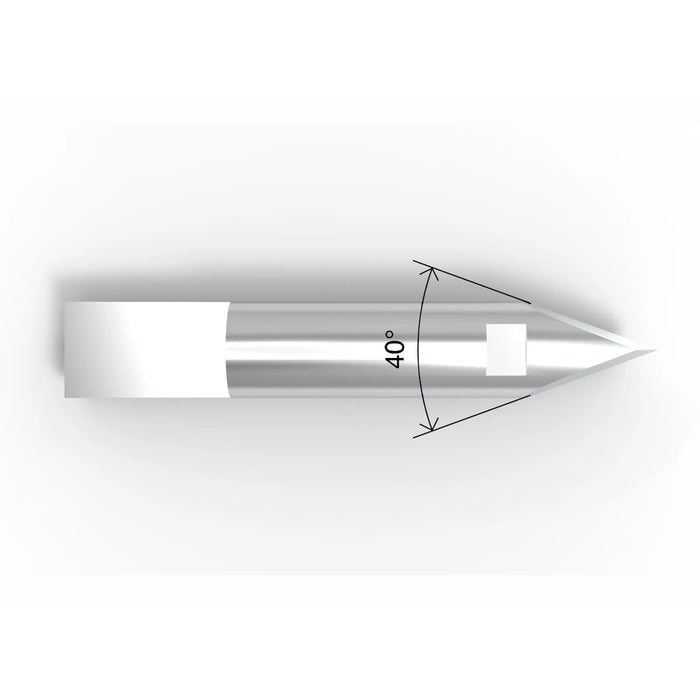

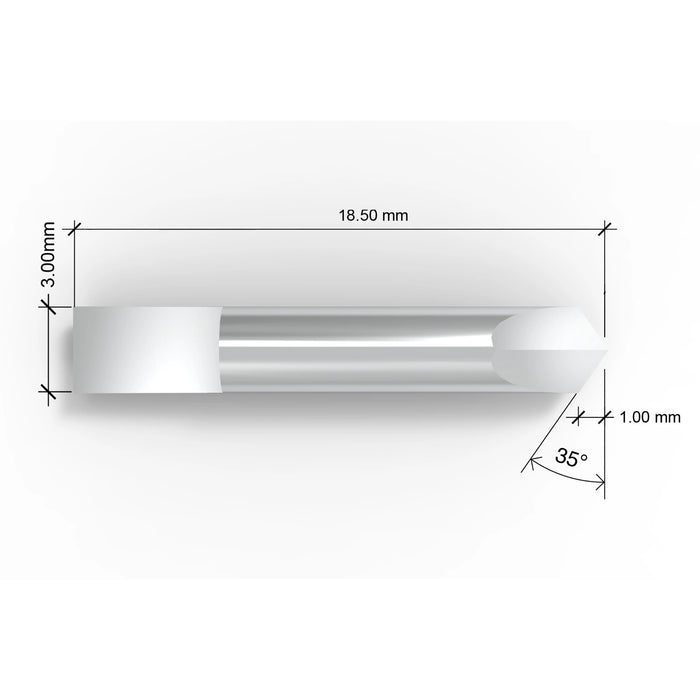

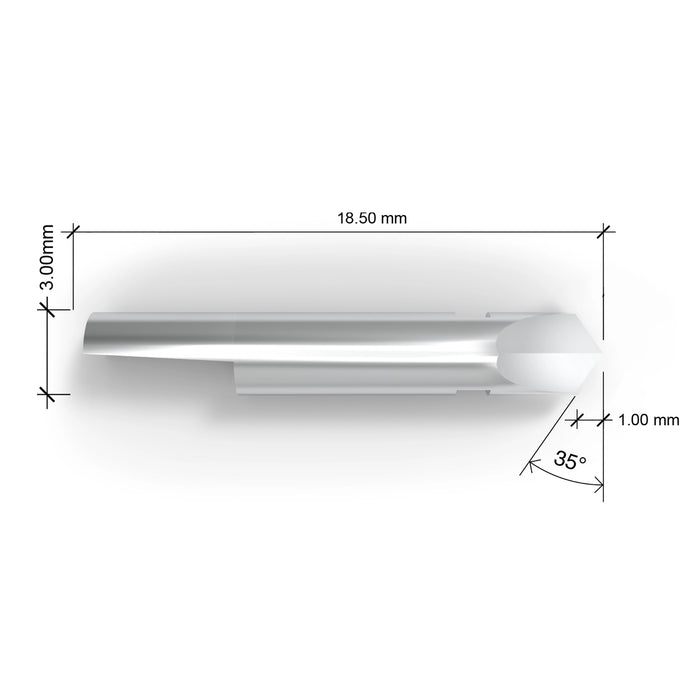

The K3 features a 35 degree cutting angle and a 40 degree wedge angle. The 35 degree cutting angle helps the blade track smoothly through the material with reduced drag. The 40 degree wedge angle provides the right balance of sharpness and edge durability. Together they deliver clean cuts, consistent detail, and reliable liner protection in production environments.
How do I know when to replace it?
Watch for cut quality changes: dragging through material, tearing instead of cutting clean, or the face material not releasing from the liner. Any of those signs mean the blade is done. Swap before the quality drop creates rework.
