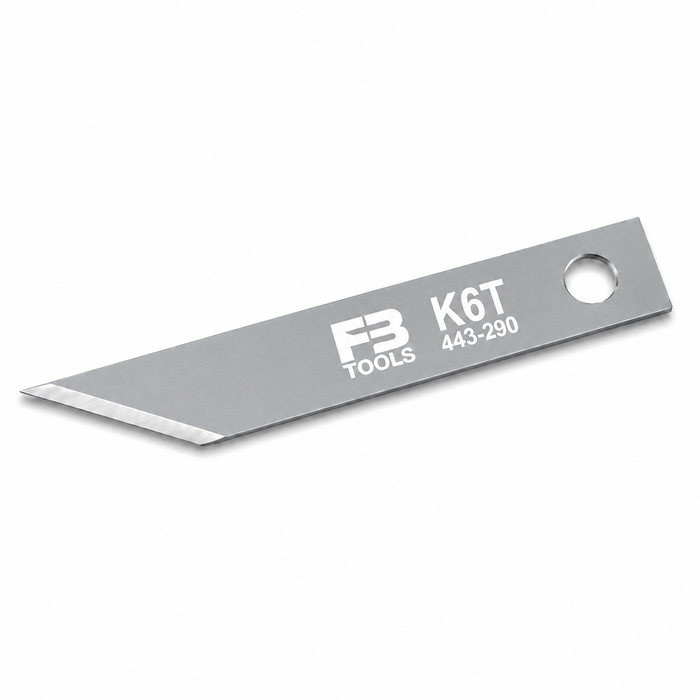

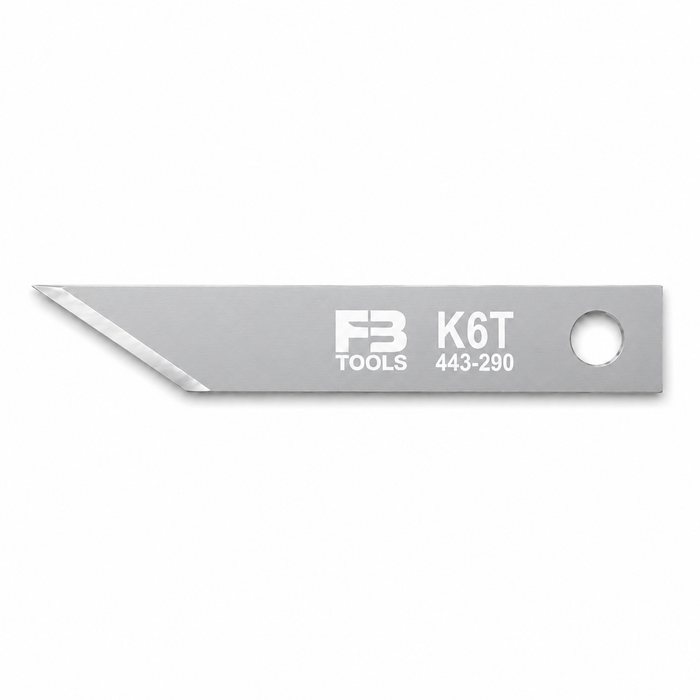

K6t - 10 Pack Type 6
The K6T is a 0.63 mm high-speed steel, flat-stock blade for through cutting, scoring, and oscillating on Esko, Gerber/MCT, and Zund digital cutting systems. It is designed for self-adhesive vinyl, polycarbonate, polyester, masking film, window preparation vinyl, magnetic media, transfer paper, 3M VHB, and other thin flexible materials.
Sold in packages of 10 blades.
Direct OEM replacement
The K6T is a confirmed replacement for the Zund Type 6 (3910310), CutGuru HS10 (894010), Martor No. 784, and Esko BLD-SF21 (42423848).
Same form, same fit, and the same mounting geometry. No holder modifications are required when replacing one of these blade types.
What is through cutting?
Through cutting means the blade cuts completely through the material and any backing or liner underneath it. The finished part separates fully from the surrounding sheet.
The K6T can also be used for scoring and compatible oscillating applications. Zund recommends using the Type 6 as an oscillating blade for the best results. When used as a drag blade, it produces a shorter overcut but applies more drag force to the material.
0.63 mm high-speed steel construction
The K6T is manufactured from 0.63 mm high-speed steel. HSS provides a practical combination of sharpness, toughness, and affordability for general production cutting.
High-speed steel is less brittle than carbide and is more tolerant of vibration and incidental impacts. This makes the K6T a reliable choice for oscillating applications and for materials that can place changing loads on the cutting edge.
The single-edge 35-degree geometry provides a sharp entry point for thin materials while the flat-stock body supports the blade during through cutting, scoring, and oscillating work.
Common questions
How do I know this fits my machine?
If your current blade is the Zund Type 6 (3910310), CutGuru HS10 (894010), Martor No. 784, or Esko BLD-SF21 (42423848), the K6T is a direct replacement.
The Zund Type 6 is used with EOT, SCT, and UCT tool configurations. If you are unsure which blade or holder is installed, contact Flatbed Tools before ordering and we will confirm compatibility.
Should I use the K6T as a drag or oscillating blade?
The K6T can be used for drag cutting, scoring, and compatible oscillating applications. For the best cutting performance, Zund recommends using this blade as an oscillating knife.
Oscillation reduces the amount of force needed to move through the material and can improve cut quality on materials that create more drag. The correct method depends on the material, tool configuration, cutting speed, and required edge quality.
Why use high-speed steel instead of carbide?
High-speed steel is cost-effective, durable, and more tolerant of vibration and impact than carbide. It is well suited for general through cutting and oscillating applications where toughness is important.
Carbide generally provides longer edge life on abrasive materials, but it is also more brittle. The best blade material depends on the application, production volume, machine condition, and material being processed.
What materials does it cut?
The K6T is recommended for a range of thin flexible materials, including:
Adhesive and film materials: Self-adhesive vinyl, masking film, window preparation vinyl, transfer paper, and 3M VHB
Plastic films and sheets: Polycarbonate and polyester
Magnetic materials: Magnetic media and magnetic foil
Cutting depth, speed, acceleration, oscillation settings, tool calibration, and machine condition all affect cut quality and blade life. Contact Flatbed Tools if you need help matching the blade and cutting parameters to your material.
Blade Specifications
Cut Method
Through Cut, Score, Oscillating
Cut Angle
Single Edge, 35°
Made Of
0.63 mm High-Speed Steel
Knife Type
Drag, Oscillating
Edge Configuration
Single Edge
Stock Form
Flat Stock
Maximum Cutting Depth
0.255 in / 6.5 mm
Start Overcut
None
End Overcut
0.022 in / 0.58 mm × Tm
Compatibility
Machine Brand
Esko, Gerber/MCT, Zund
Compatible Zund Tools
EOT, SCT, UCT
Compatible Materials
3M VHB, Magnetic Media, Magnetic Foil, Masking Film, Polycarbonate, Polyester, Self-Adhesive Vinyl, Transfer Paper, Window Preparation Vinyl
OEM Cross References
Zund Type 6 / 3910310
CutGuru HS10 / 894010
Martor No. 784
Esko BLD-SF21 / 42423848
Package Quantity
10 Blades
